PRODUCT DESCRIPTION

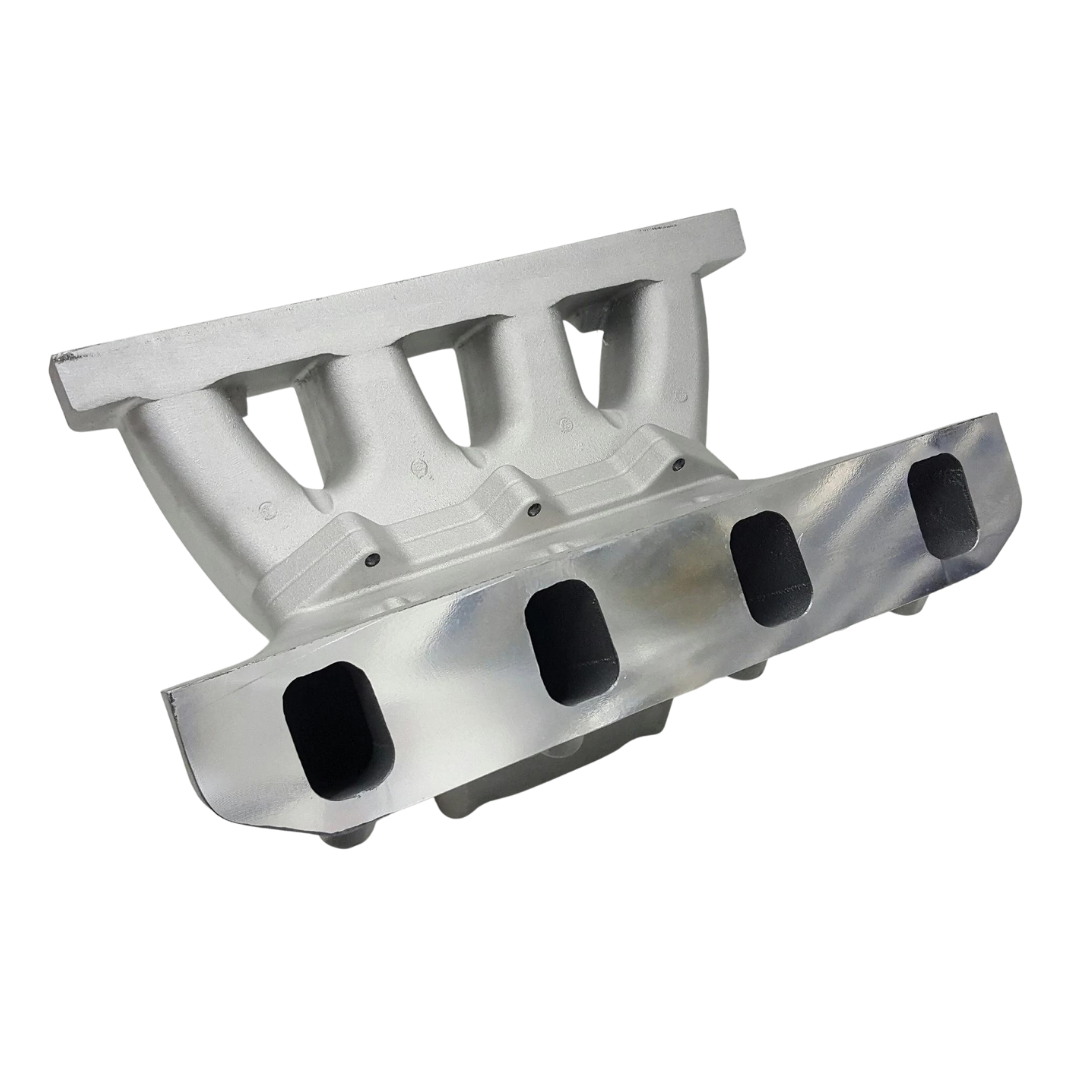

CID Heads SB Ford 5.0 4150 Semi Finished Flange BA Intake Manifold 9.5" Deck

The CID Heads BA 5.0 intake manifold is designed for engine applications aiming to make 850+HP using a cast single plane intake. The CID Heads BA SB Ford intake manifold has an overall height of 9.75" and unmatched HP producing characteristics amongst all Ford cast single plane manifolds.

This version features the same 4500 square carb pad opening as the 4500 version, with 4150 Holley carburetor bolt spacing, and is designed for classes that must retain 4150 bolt spacing.

This version features the same 4500 square carb pad opening as the 4500 version, with 4150 Holley carburetor bolt spacing, and is designed for classes that must retain 4150 bolt spacing.

Semi finished flanges so it can be adapted to various SB Ford heads.

Product Features

• The BA SB Ford 4150 intake is designed for engines making 850+HP street, race and marine applications.
• Near equal length runners that are 5" in area at the plenum opening with enough material to increase area to 6.0+" at plenum
• Semi Finished flange without bolt holes to suit various SB Ford heads.
• Intake manifold designed to fit 9.5" deck blocks
• Designed and manufactured in the USA
• Made to order and a "Final Sale"

Specifications

• 9.5" Deck Height
• 4150 Carb Bolt Pattern - 4500 Opening
• 5.0" of area at the plenum and of the runner
• 9.75" tall. Can be milled down to 9.25"

What's In The Box:

One CID Heads BA SB Ford Semi Finished Intake Flange 4150 9.5" Deck Intake Manifold.
