CID Heads SB Ford D3 5.0 4500 EFI 9.5" Deck Intake

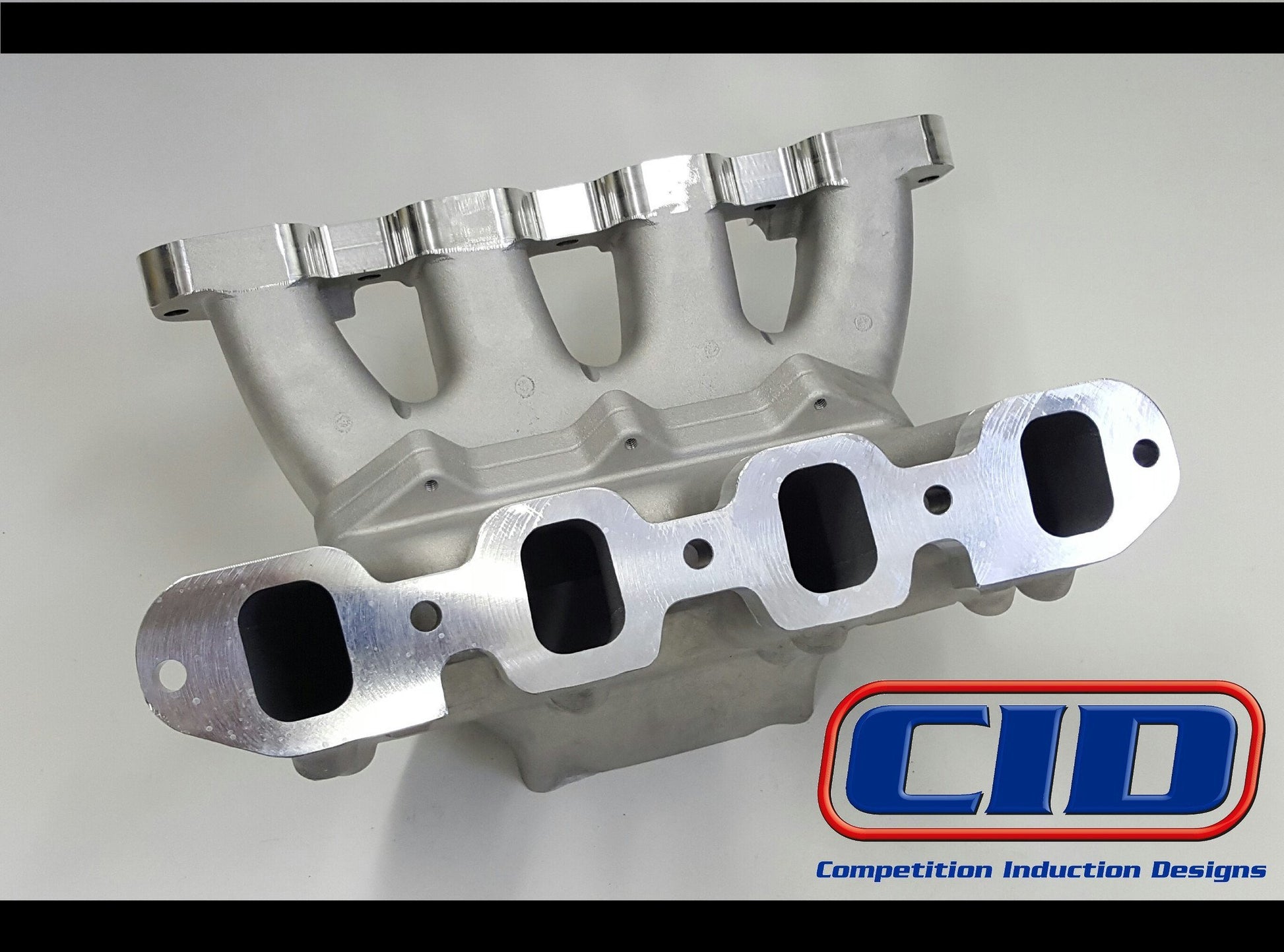

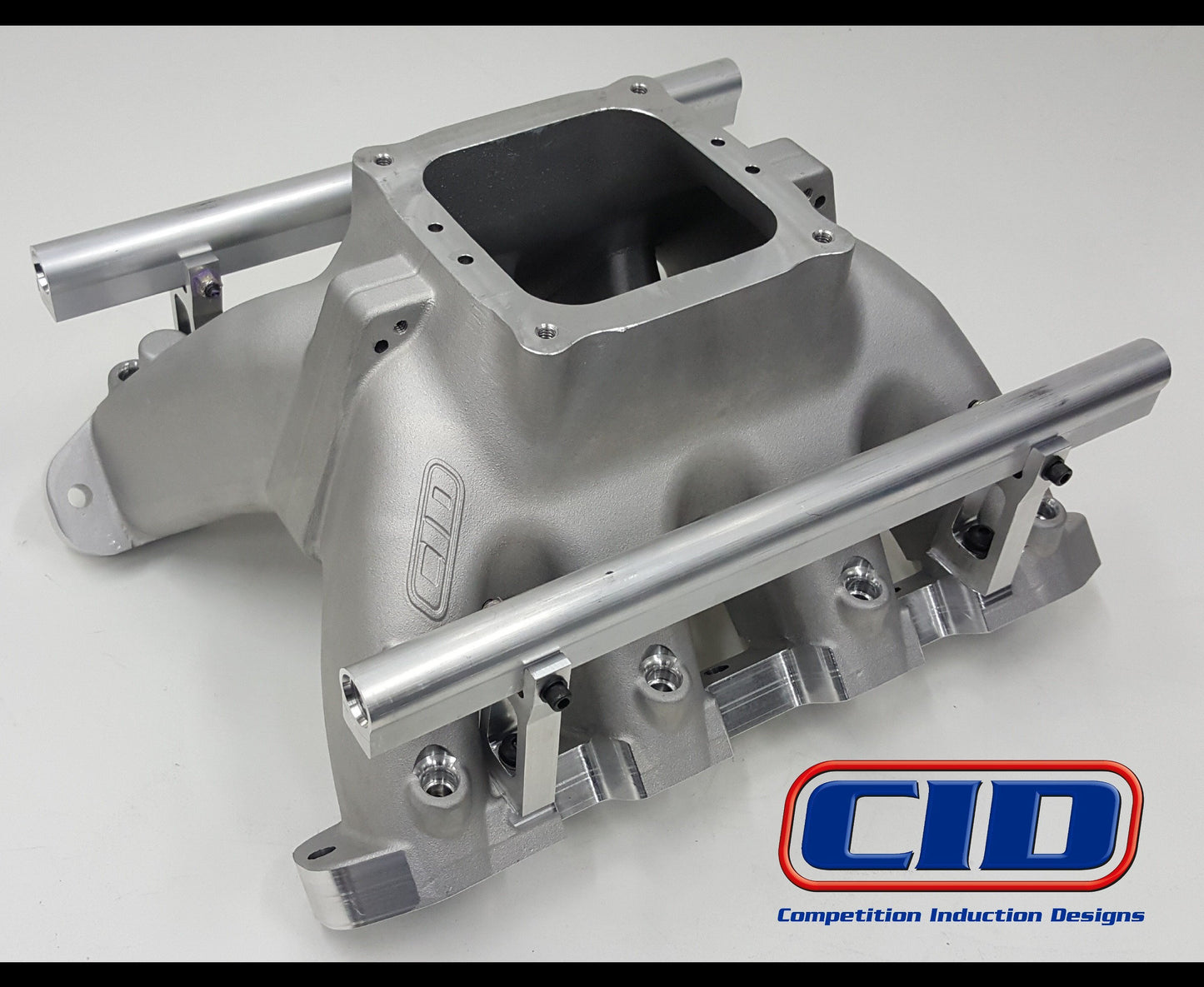

The CID Heads BE 5.0" MCSA D3 intake manifold is designed for engine applications aiming to make 850+HP using D3 cylinder heads with a cast single plane intake. The CID Heads D3 BA intake manifold has an overall height of 9.75" and unmatched HP producing characteristics amongst all Ford cast single plane manifolds. It features a square carb pad designed to suit a 4500 Dominator carburetor or throttle body and comes with EFI fuel rails and CNC billet fuel rail mounting brackets.

Product Features

• The D3 4500 BA intake is designed for engines making 850+HP street, race and marine applications.

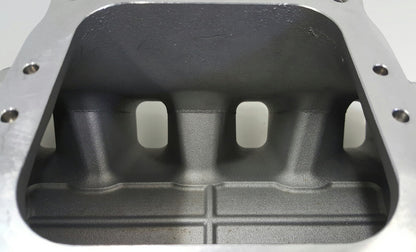

• Near equal length runners that are 5" in area at the plenum opening with enough material to increase area to 6.0+" at plenum

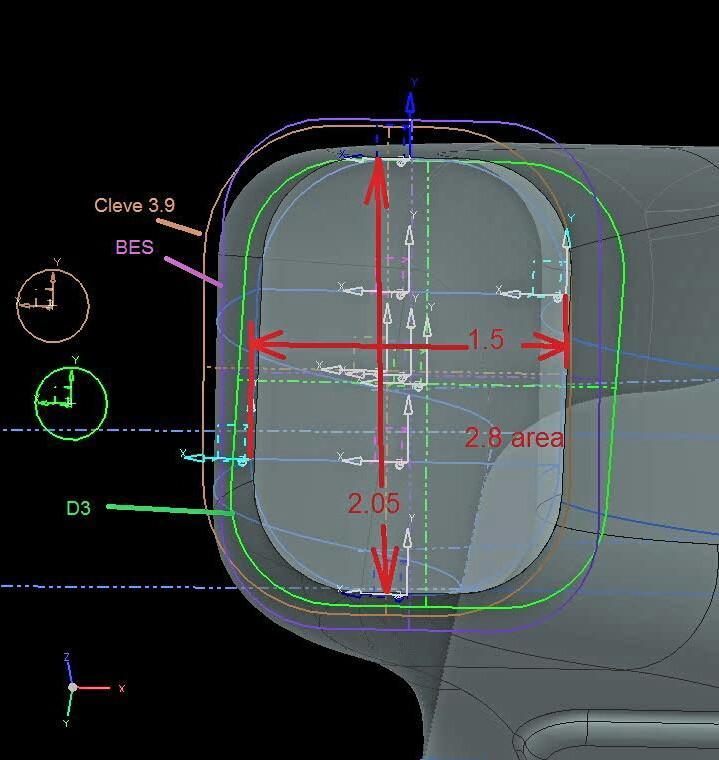

• Designed to fit D3 port openings with port matching.
• Intake manifold designed to fit 9.5" deck blocks
• Comes with - 12 fuel rails and CNC billet EFI fuel rail mounting brackets.
• STD injector location is the lower cast bungs while CNC fuel rail brackets are in stock. Upper fuel injector location can be selected as an option.
• Designed and manufactured in the USA
• Made to order and a "Final Sale"

Specifications

• 9.5" Deck Height
• 4500 Carb bolt pattern
• Set up for EFI. Includes - 12 fuel rails and CNC billet fuel rail brackets.
• 5.0" of area at the plenum and of the runner
• 9.75" tall. Can be milled down to 9.25"

What's In The Box:

One CID Heads SB Ford D3 4500 EFI 9.5" Deck BA Intake Manifold.
