PRODUCT DESCRIPTION

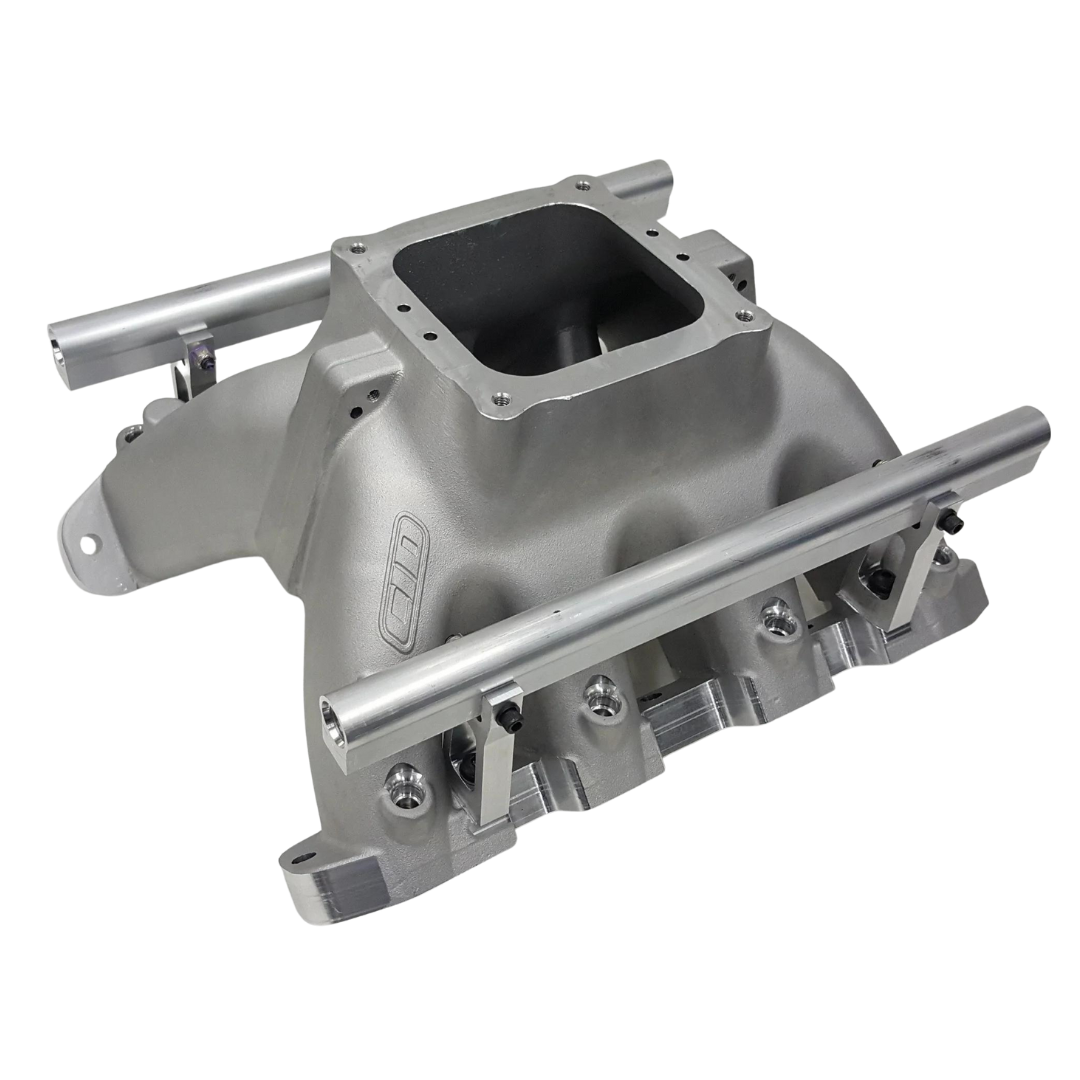

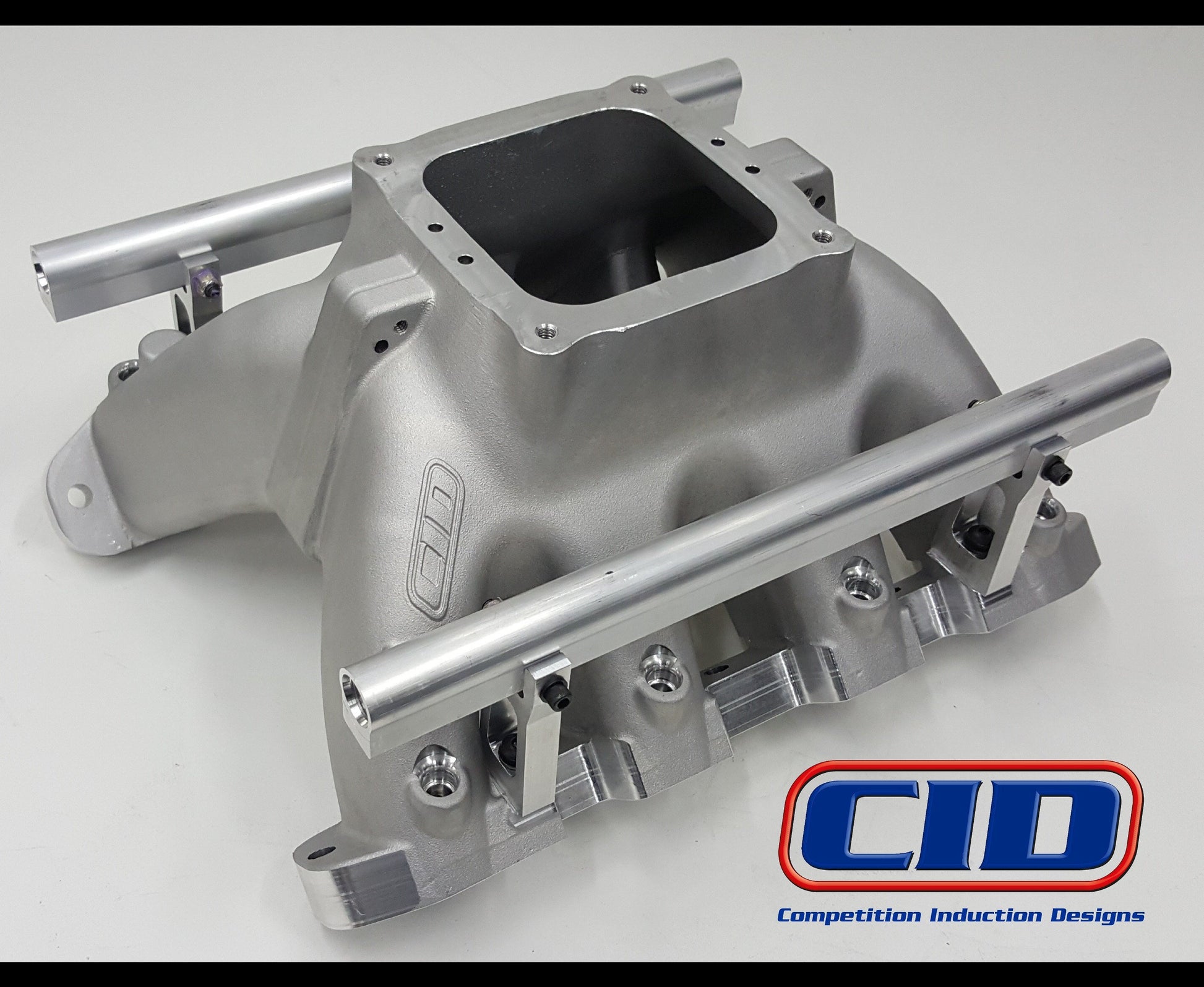

CID Heads SB Ford SC1 - GV2 5.0 EFI 4500 9.5" Deck BA  Intake Manifold

The CID Heads SB Ford SC1 5.0 BA intake manifold is designed for engine applications aiming to make 850+HP using SC1 and GV2 cylinder heads with a cast single plane intake. The CID Heads SC1 BA intake manifold has an overall height of 9.75" and unmatched HP producing characteristics amongst all Ford cast single plane manifolds. It features a square carb pad designed to suit a 4500 Dominator carburetor or throttle body and comes with EFI fuel rails and CNC billet fuel rail mounting brackets.

Product Features

• The SC1 4500 BA intake is designed for engines making 850+HP street, race and marine applications.

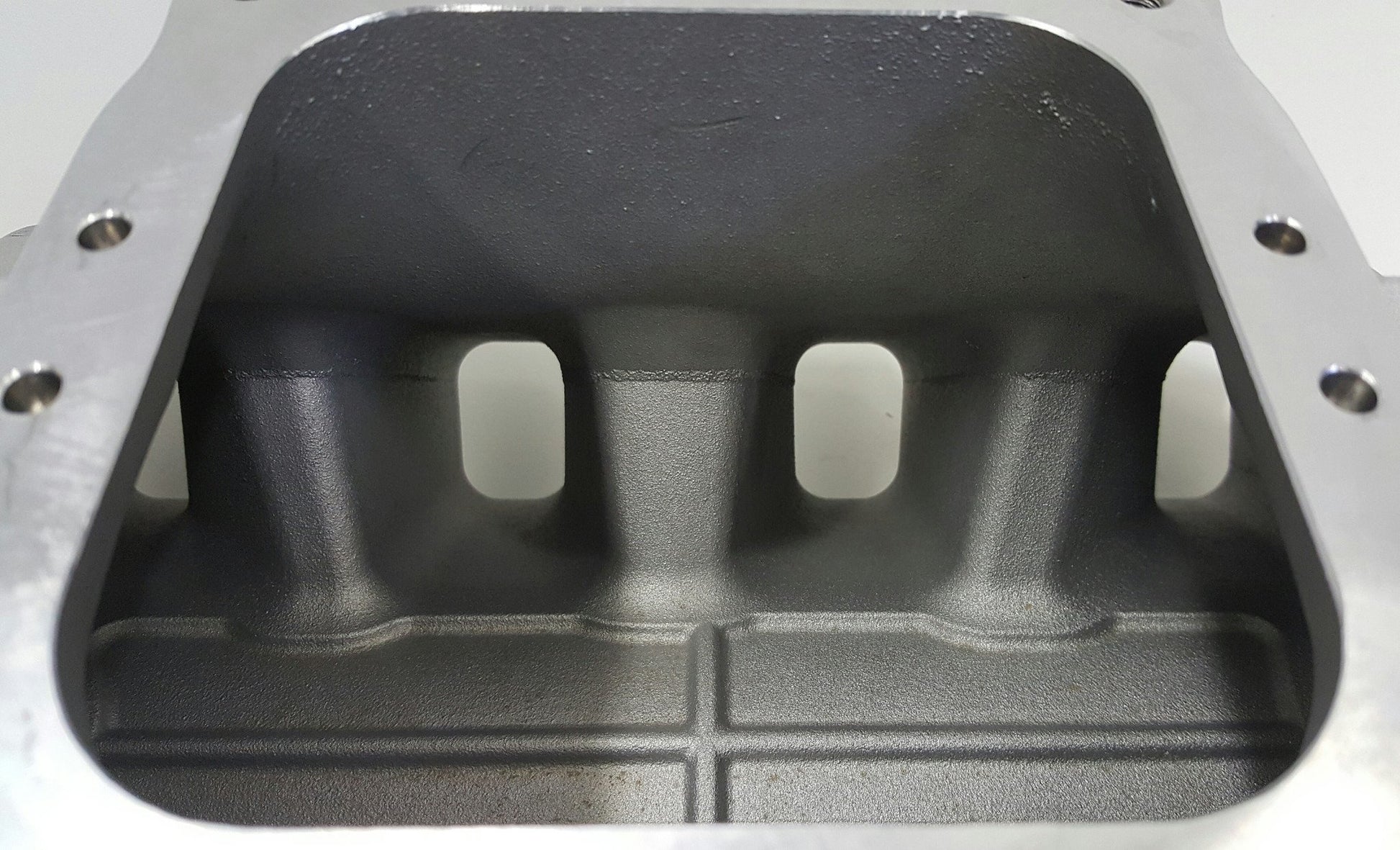

• Near equal length runners that are 5" in area at the plenum opening with enough material to increase area to 6.0+" at plenum

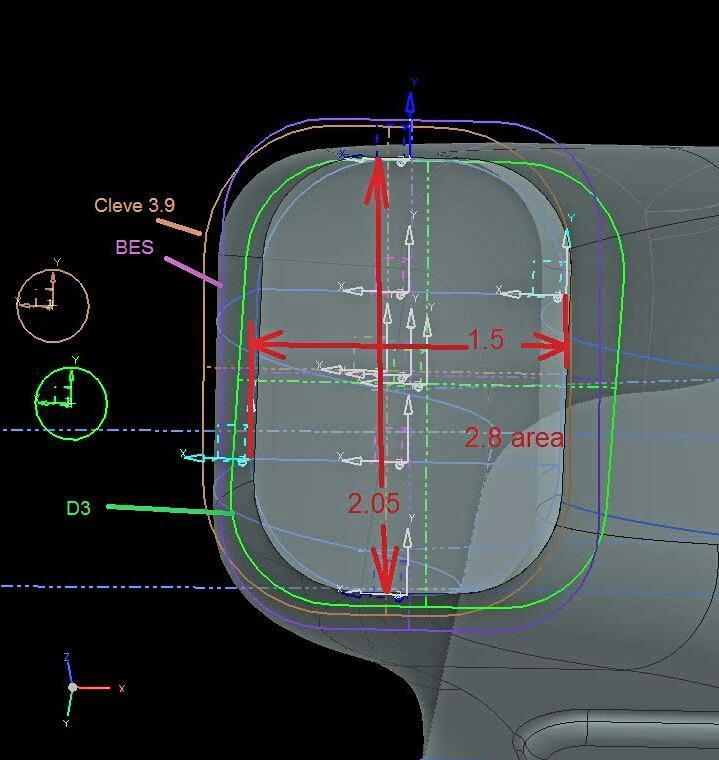

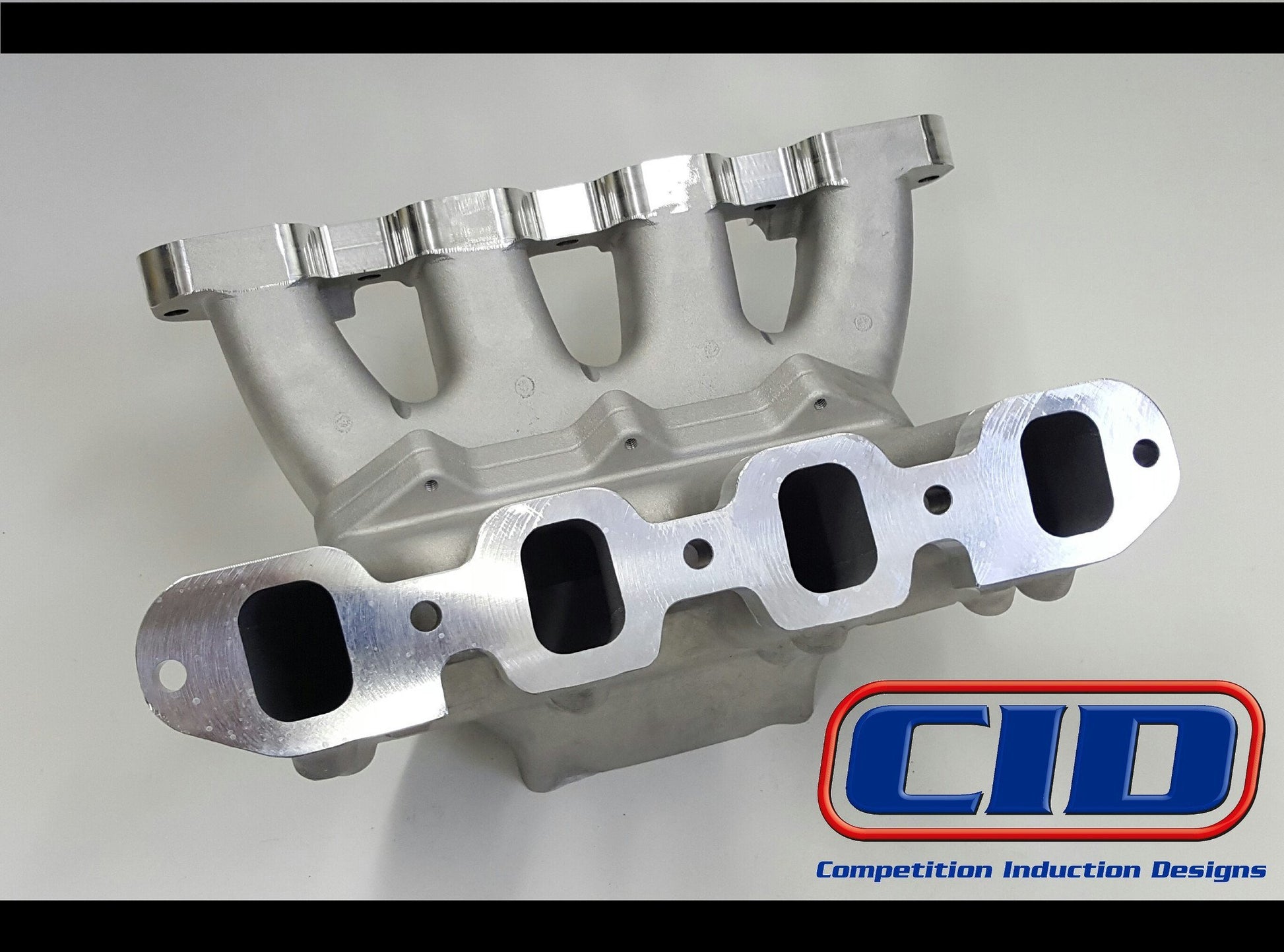

• Designed to fit SC1 & GV2 port openings with port matching.
• Intake manifold designed to fit 9.5" deck blocks
• Comes with - 12 fuel rails and CNC billet EFI fuel rail mounting brackets
• Designed and manufactured in the USA
• Made to order and a "Final Sale"

Specifications

• 9.5" Deck Height
• 4500 Carb bolt pattern
• Set up for EFI. Includes - 12 fuel rails and CNC billet fuel rail brackets.
• 5.0" of area at the plenum and of the runner
• 9.75" tall. Can be milled down to 9.25"

What's In The Box:

One CID Heads SB Ford SC1 - GV2 4500 EFI 9.5" Deck BA Intake Manifold.
